คุณสมบัติ | รายละเอียด |
|---|---|

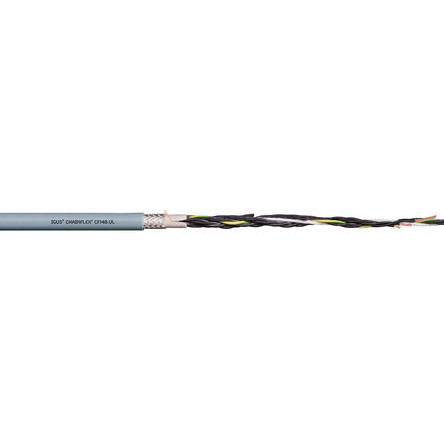

| Series | chainflex CF140.UL |
| Number of Cores | 3 |
| Cross Sectional Area | 0.5 mm² |
| Screened/Unscreened | Screened |
| Length | 25m |
| Cable Shape | Multicore |
| Sheath Colour | Grey |
| American Wire Gauge | 20 AWG |
| Outer Diameter | 8mm |
| Sheath Material | PVC |
| Conductor Material | Bare Copper |
| Voltage Rating | 300/500 V |
| Minimum Bend Radius | 7.5 x D |
| Screen Type | Braid |
| Maximum Operating Temperature | +70°C |
| Armoured | No |
| Earth Cable | Yes |
| Oil Resistant | No |
| Minimum Operating Temperature | -5°C |
| Fire Behaviour | Flame Retardant |
| Current Rating | 10 A |
| Insulation Material | TPE |
| Conductor Resistance | 39 Ω/km |
