คุณสมบัติ | รายละเอียด |
|---|---|
| Series | RKMW |
| Number of Cores | 3 |
| Cross Sectional Area | 0.14 mm² |
| Sheath Colour | Black |
| Sheath Material | Polyurethane PUR |
| Length | 5m |

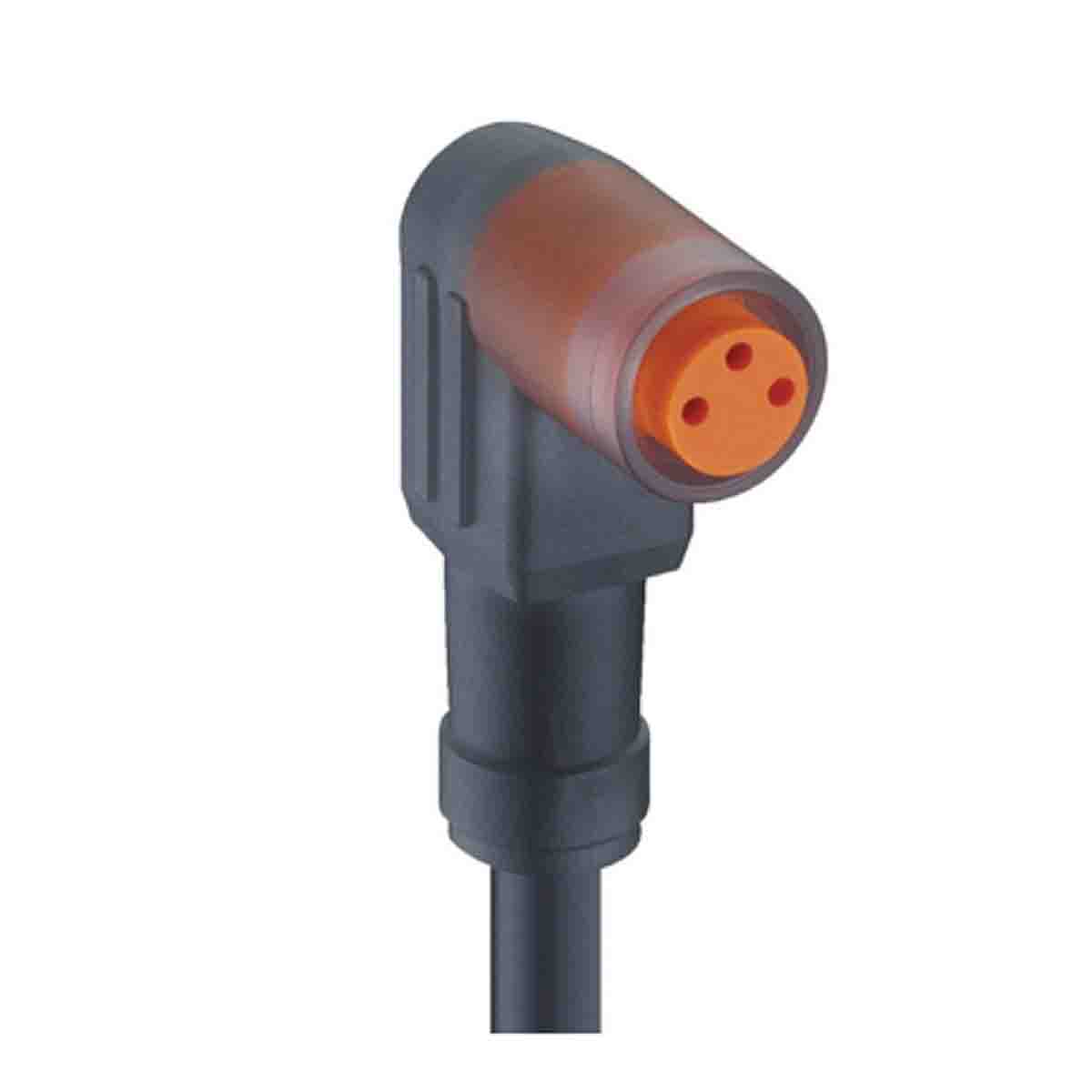

| Connector 1 Gender | Female |
| Connector 1 | M8 |
| Connector 1 Number of Contacts | 3 |
| Connector 1 Orientation | Right Angle |
| Connector 2 | Unterminated |
| Coding | A |
| Shielding | Unshielded |
| Shielded/Unshielded | Unshielded |
| Current Rating | 2 A |
| Voltage Rating | 60 V |
| IP Rating | IP65 |
| Outer Diameter | 2.9mm |
| Cable Shape | Round |
| Oil Resistant | Yes |
| Standards Met | RoHS Compliant, UL |
| Minimum Operating Temperature | -40°C |
| Fire Behaviour | Halogen Free |
| Insulation Material | PP |
| American Wire Gauge | 22 AWG |
| Conductor Resistance | 10 mΩ |
| Minimum Bend Radius | 10 x D (Flexible Inst), ? 3 x D (Fixed Inst) |
| Maximum Operating Temperature | +90°C |
| Operating Temperature Range | -40 → +90 °C |
| Conductor Material | Copper |
