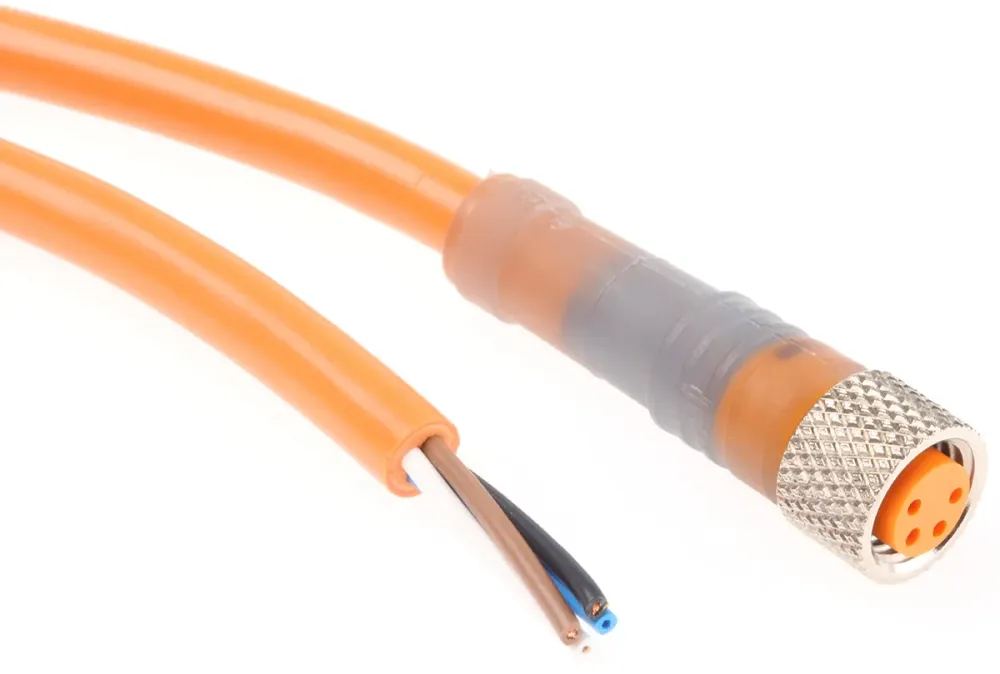

คุณสมบัติ | รายละเอียด |
|---|---|
| Number of Cores | 4 |
| Cross Sectional Area | 0.25 mm² |
| Length | 2m |
| Sheath Colour | Orange |
| Sheath Material | PUR |
| Connector 1 | M8 |
| Connector 1 Number of Contacts | 4 |
| Connector 1 Gender | Female |
| Connector 1 Orientation | Straight |
| Connector 2 Gender | Male |
| Connector 2 | Unterminated |
| Connector 2 Orientation | Straight |
| Connector 2 Number of Contacts | 4 |
| Coding | A |
| Shielding | Unshielded |
| Shielded/Unshielded | Unshielded |
| Current Rating | 4 A |
| Voltage Rating | 30 V |
| IP Rating | IP65, IP67 |
| Connector 1 Housing Gender | Female |
| Minimum Bend Radius | ? 5 x D |
| Cable Shape | Round |
| Standards Met | UL 94 HB |
| Maximum Operating Temperature | +90°C |
| Conductor Resistance | = 10 mΩ |
| Minimum Operating Temperature | -40°C |
| Insulation Material | PVC |
| Operating Temperature Range | -25 → +100 °C |
| American Wire Gauge | 24 AWG |
| Oil Resistant | Yes |
