คุณสมบัติ | รายละเอียด |
|---|---|
| Coil Voltage | 24V dc |
| Contact Configuration | SPDT |
| Mounting Type | DIN Rail |
| Number of Poles | 1 |
| Load Current Rating | 50mA |
| Load Voltage Rating | 30V |
| Maximum Input Voltage | 26.4V |
| Minimum Input Voltage | 21.6V |
| Terminal Type | Screw |
| Switching Voltage | 400V ac |
| Depth | 6.2mm |
| Height | 90mm |
| Length | 88mm |

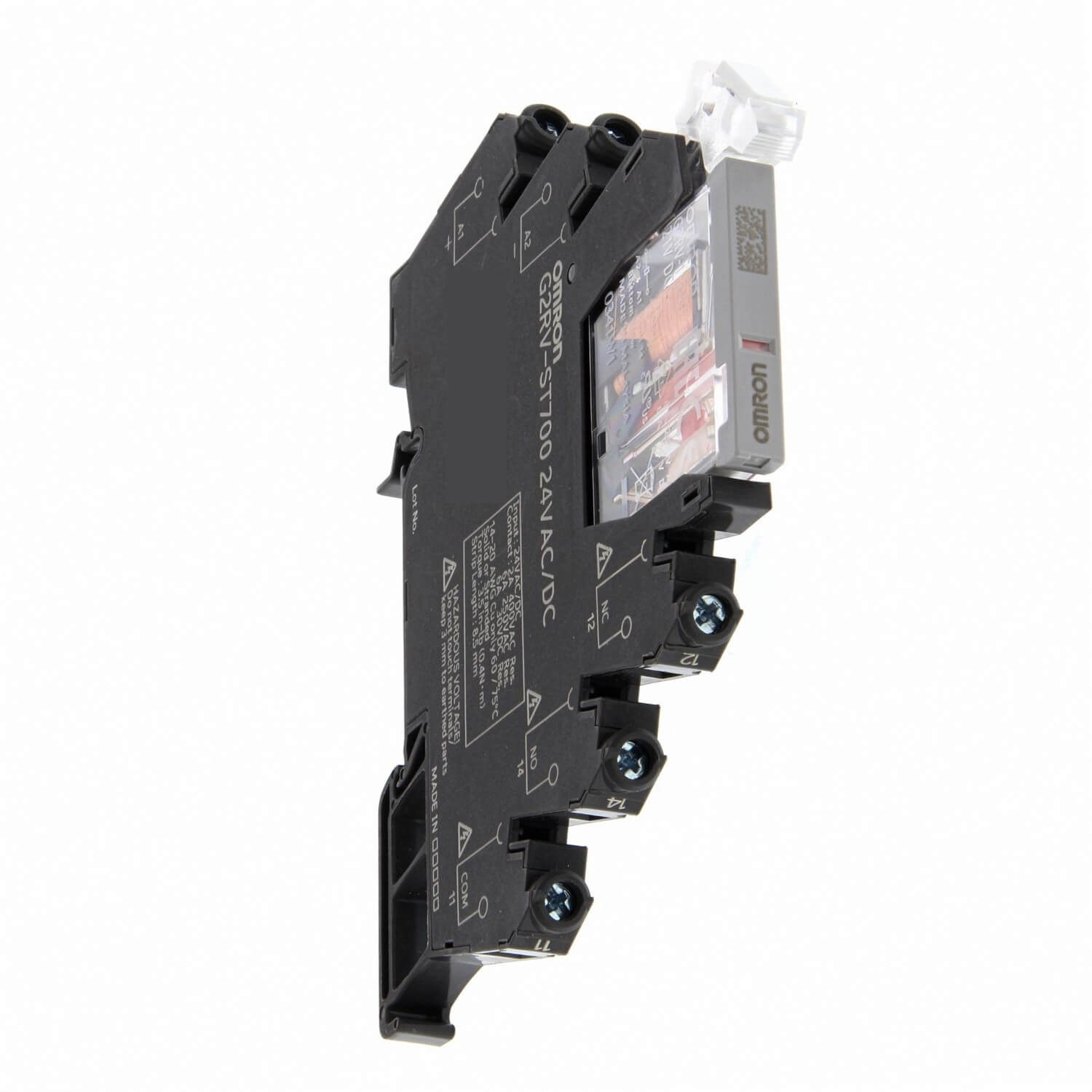

| Series | G2RV-ST |
| Contact Material | Ag Alloy |
| Input Current | 13.5mA |
| Standards Met | CE, CULus |
| Special Features | LED, Mechanical Indicator, Transparent Case |
| Accessory Type | Relay Module |
| Operating Temperature Range | -40 → 55°C |
| For Use With | Industrial Control Equipment |
| Control Resistance | 100MΩ |
| Turn Off Time | 20 (For DC)/40(For AC)ms |
| Turn On Time | 20ms |
| Life | 5000000 cycles |
| Relay Type | Electro Mechanical |
| Relay Switching Classification | Electromechanical Relay |
| Maximum Operating Temperature | +55°C |
| Input Voltage Range | 21.6-26.4V |
| Input Resistance | 1.8kΩ |
| Dimensions | 88 x 90 x 6.2mm |
| Minimum Operating Temperature | -40°C |
