คุณสมบัติ | รายละเอียด |
|---|---|
| Coil Voltage | 24V dc |
| Contact Configuration | DPST |
| Mounting Type | PCB Mount |
| Switching Current | 8A |
| Number of Poles | 2 |
| Latching | No |
| Terminal Type | Through Hole |
| Length | 20mm |
| Coil Resistance | 2.88 kΩ |
| Coil Power | 200mW |
| Contact Material | Silver |
| Isolation Coil To Contact | 2kV ac |

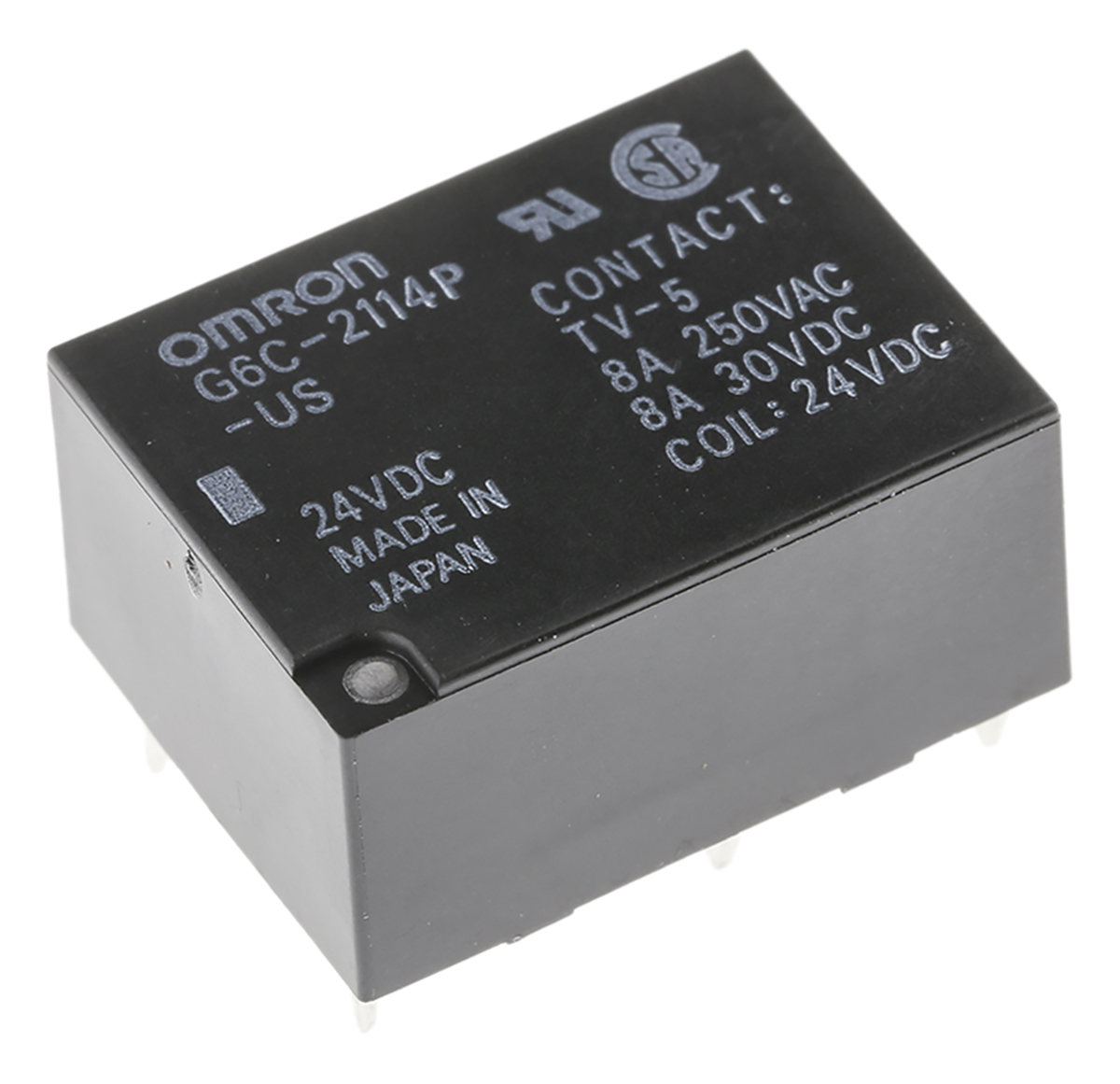

| Series | G6C |
| Height | 10mm |
| Maximum Operating Temperature | +70°C |
| Life | 50000000 (Electrical) cycles |
| Minimum Operating Temperature | -25°C |
| Depth | 15mm |
| Maximum Switching Power AC | 2 kVA |
| Maximum Switching Power DC | 240 W |
| Application | Power |
