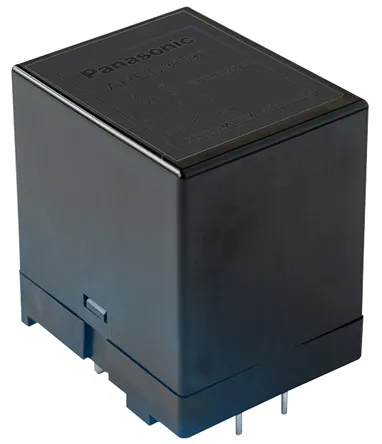

คุณสมบัติ | รายละเอียด |
|---|---|
| Coil Voltage | 12V dc |
| Contact Configuration | DPST |
| Mounting Type | PCB Mount |
| Switching Current | 35A |
| Number of Poles | 2 |
| Latching | No |
| Terminal Type | PCB Pin |
| Maximum Switching Voltage AC | 480V |
| Maximum Switching Voltage DC | 110V dc |
| Length | 30mm |
| Coil Resistance | 76.6Ω |
| Coil Power | 1.88W |
| Height | 40mm |
| Minimum Operating Temperature | -40°C |
| Contact Material | Silver Alloy |
| Depth | 36mm |
| Life | Minimum of 30000 (Eletrical) operations, Minimum of 5000000 (Mechanical) operations |
| Standards Met | cUL, cULus, UL, VDE |
| Isolation Coil To Contact | 2kVrms |
| Maximum Operating Temperature | +85°C |
| Maximum Switching Power AC | 9.695 kVA |
| Application | Industrial Equipment, Inverter, Office Air Conditioner, Photovoltaic Power Generation Systems, Uninterruptible Power Supplies |
