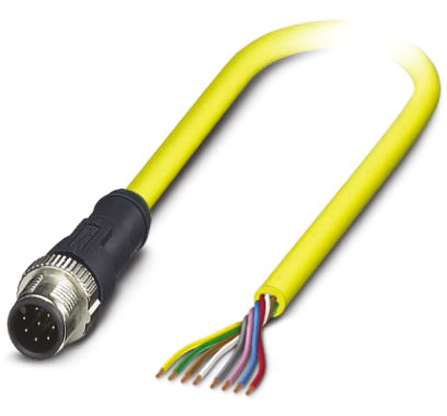

คุณสมบัติ | รายละเอียด |
|---|---|
| Series | SAC-8P-MS/ 5.0-542 SCO BK |
| Number of Cores | 8 |
| Cross Sectional Area | 0.25 mm² |
| Sheath Colour | Yellow |
| Sheath Material | PVC |
| Length | 5m |
| Connector 1 | M12 |
| Connector 1 Number of Contacts | 8 |
| Connector 1 Gender | Male |
| Connector 1 Orientation | Straight |
| Connector 2 | Unterminated |
| Coding | A |
| Shielded/Unshielded | Unshielded |
| Voltage Rating | 30 V |
| Current Rating | 2 A |
| IP Rating | IP65, IP67, IP68 |
| Insulation Material | PVC |
| Conductor Resistance | 79.7 O/km |
| American Wire Gauge | 24 AWG |
| Outer Diameter | 5.7mm |
| Standards Met | cUL, EAC, IEC 61076-2-101, UL |
| Fire Behaviour | Flame Retardant |
| Minimum Operating Temperature | -5(Flexible) °C, -40(Fixed) °C |
| Connector 1 Housing Gender | Male |
| Maximum Operating Temperature | +80°C |
| Conductor Material | Tinned Copper |
| Minimum Bend Radius | 44/ 8 x D mm |
