คุณสมบัติ | รายละเอียด |
|---|---|

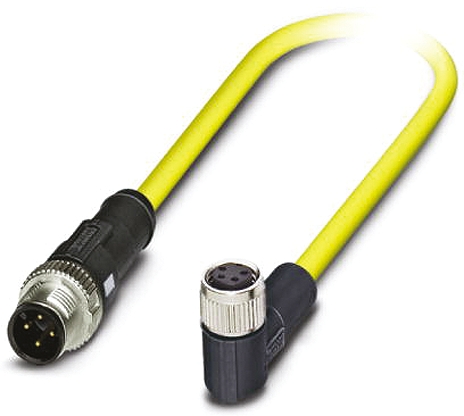

| Series | SAC-4P-MS/0.5-542/M8 FR SCO BK |
| Number of Cores | 4 |
| Cross Sectional Area | 0.25 mm² |
| Sheath Material | PVC |
| Sheath Colour | Yellow |
| Length | 500mm |
| Connector 1 Gender | Female |
| Connector 1 | M8 |
| Connector 1 Number of Contacts | 4 |
| Connector 1 Orientation | Right Angle |
| Connector 2 | M12 |
| Connector 2 Gender | Male |
| Connector 2 Number of Contacts | 4 |
| Connector 2 Orientation | Straight |
| Connector 2 Housing Gender | Male |
| Coding | A |
| Shielding | Unshielded |
| Shielded/Unshielded | Unshielded |
| Armoured | No |
| Current Rating | 4 A |
| IP Rating | IP65, IP67, IP68 |
| Minimum Operating Temperature | -30°C |
| Maximum Operating Temperature | +105°C |
| American Wire Gauge | 24 AWG |
| Operating Temperature Range | -30 → +105 °C |
| Number of Strands | 4 |
| Connector 1 Housing Gender | Female |
| Conductor Resistance | 79.7 Ω/km |
| Insulation Material | PVC |
| Conductor Material | Tin Plated Copper Litz Wires |
| Standards Met | cUL, UL |
