คุณสมบัติ | รายละเอียด |
|---|---|

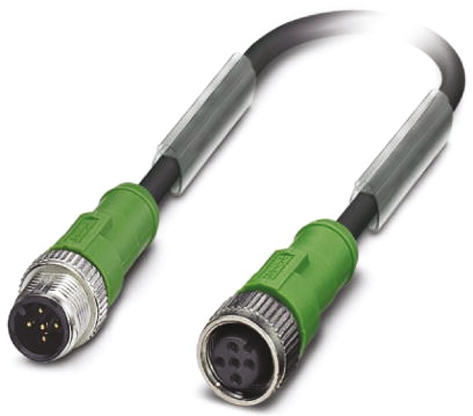

| Series | SAC-5P-M12MS/0.3-PUR/M12FS |
| Cross Sectional Area | 0.34 mm² |
| Number of Cores | 5 |
| Sheath Material | PUR |
| Sheath Colour | Black |
| Length | 300mm |
| Connector 1 Gender | Female |
| Connector 1 | M12 |
| Connector 1 Orientation | Straight |
| Connector 1 Number of Contacts | 5 |
| Connector 2 | M12 |
| Connector 2 Orientation | Straight |
| Connector 2 Gender | Male |
| Connector 2 Housing Gender | Male |
| Connector 2 Number of Contacts | 5 |
| Coding | A |
| Mounting Type | Cable Mount |
| Shielded/Unshielded | Unshielded |
| Voltage Rating | 60 V |
| Current Rating | 4 A |
| IP Rating | IP65, IP67, IP68 |
| Oil Resistant | Yes |
| Cable Shape | Multicore |
| Standards Met | cUL, cULus, EAC, UL |
| Minimum Operating Temperature | -40°C |
| Fire Behaviour | Fire Resistant, Flame Retardant |
| Insulation Material | PE (Coaxial), PP (Twisted Pair) |
| Conductor Resistance | 58 Ω/km |
| American Wire Gauge | 22 AWG |
| Outer Diameter | 4.55mm |
| Operating Temperature Range | -40 → +80 °C |
| Conductor Material | Copper |
| Connector 1 Housing Gender | Female |
| Maximum Operating Temperature | +80°C |
