คุณสมบัติ | รายละเอียด |
|---|---|
| Series | QUINT POWER |
| Type | Switched Mode |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| AC or DC Input Voltage | ac |
| Input Voltage | 85 - 264V ac |
| AC or DC Output Voltage | dc |
| Output Voltage | 24V dc |
| Output Current | 5A |
| Power Rating | 120W |
| Dimensions | 125 x 40 x 130mm |
| Width | 40mm |
| Height | 130mm |
| Depth | 130mm |
| Minimum Temperature | -25°C |
| Standards Met | cULus Listed, RoHS Compliant |
| MTBF | 1134000h |
| Ripple And Noise | 40mV Pk-Pk |
| Maximum Temperature | +70°C |

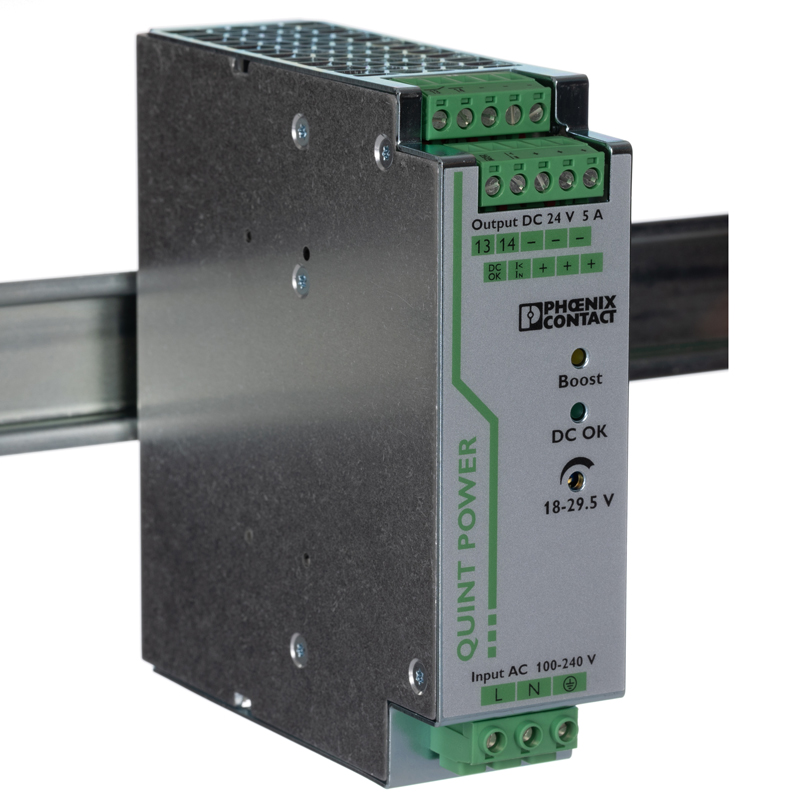

| Model | QUINT-PS/1AC/24DC/ 5 |
| Special Features | Fuse Breaking |
| Load Regulation | ±1% |
| Efficiency | >90% |
| Mounting Type | DIN Rail Mount |
