คุณสมบัติ | รายละเอียด |
|---|---|
| Number of Cores | 8 |
| Sheath Colour | Teal |
| Sheath Material | PVC |
| Length | 1m |
| Connector 1 Number of Contacts | 8 |
| Connector 1 Orientation | Straight |
| Connector 1 Gender | Male |

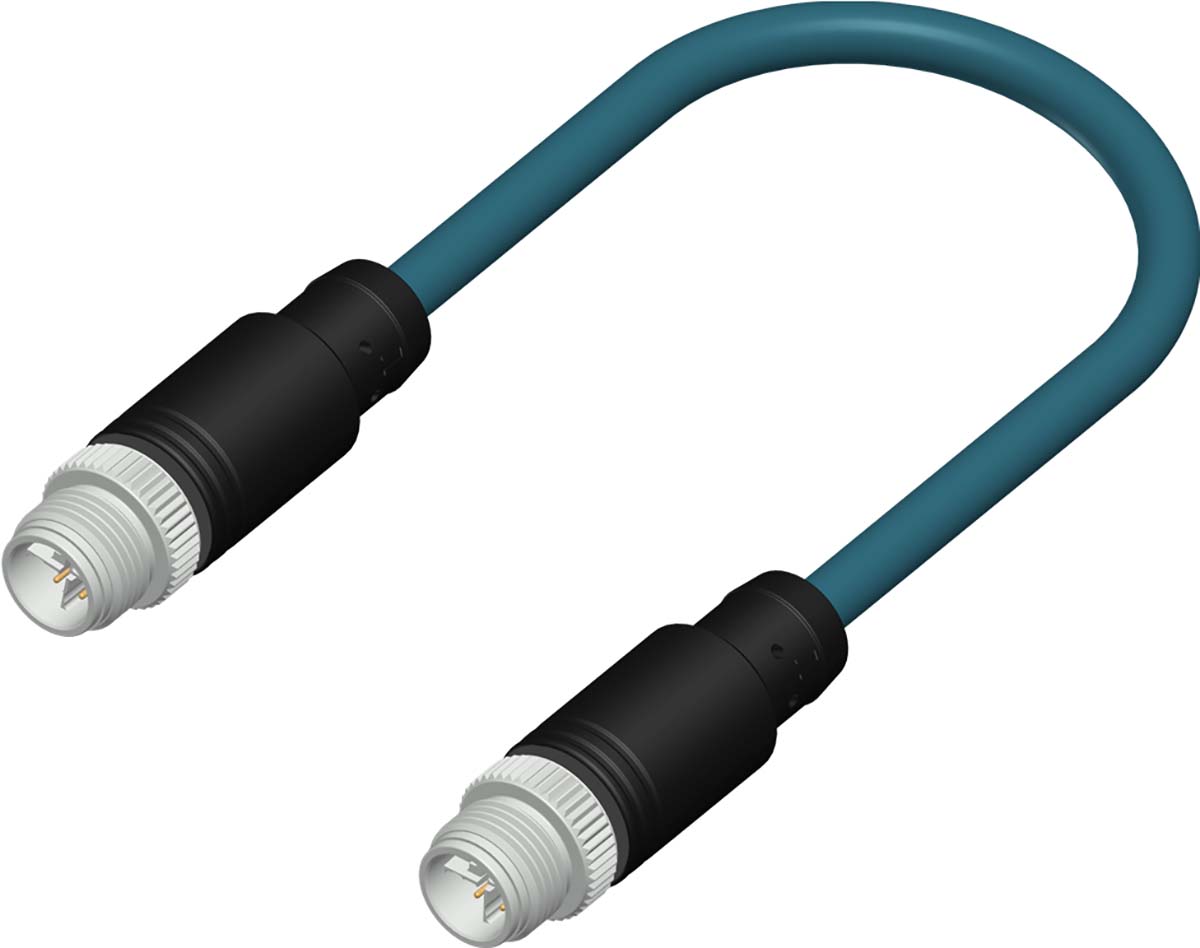

| Connector 1 | M12 |
| Connector 2 | M12 |
| Connector 2 Housing Gender | Male |
| Connector 2 Number of Contacts | 8 |
| Connector 2 Gender | Male |
| Connector 2 Orientation | Straight |
| Coding | X |
| Shielded/Unshielded | Shielded |
| Shielding | Tinned Copper Braid |
| Current Rating | 0.5 A |
| Voltage Rating | 60 V |
| IP Rating | IP67 |
| Maximum Operating Temperature | +75°C |
| Minimum Operating Temperature | -25°C |
| Insulation Material | PVC |
| American Wire Gauge | 26 AWG |
| Outer Diameter | 6.3mm |
| Connector 1 Housing Gender | Male |
| Number of Strands | 7 |
| Operating Temperature Range | -25 °C→+75 °C |
| Cable Shape | Twisted Pair |
| Conductor Material | Copper |
RKF5-56/0.2
MRDAP04CAPC00
21340304312050
