คุณสมบัติ | รายละเอียด |
|---|---|
| Encoder Technology | Incremental |

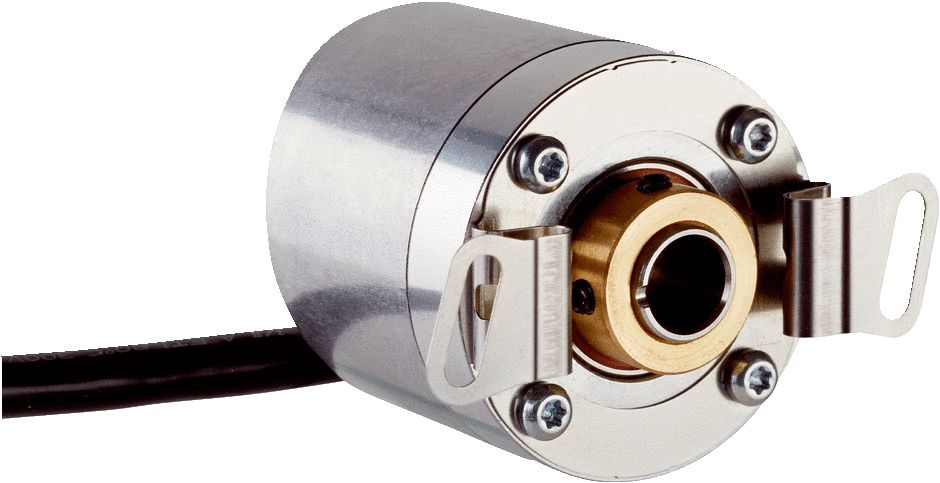

| Series | DBS36 |
| Pulses Per Revolution | 2048ppr |
| Maximum Revolutions | 6000rpm |
| Output Signal Type | RS422, TTL |
| Shaft Type | Blind Hollow |
| Shaft Diameter | 8mm |
| Supply Voltage | 30 V |
| Steps Per Revolution | 90ppr |
| IP Rating | IP65 |
| Overall Height | 37mm |
| Interface | RS-422 |
| Overall Width | 37mm |
| Overall Depth | 45.4mm |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +85°C |
| Mounting Type | Flange Mount |
| Connection Type | Cable |
| Current Rating | 30 mA |
BTIV 24S 16.24K 1024 G4 5
PK-M-0225 0000X000X00
EIL580-SC10.5FN.02048.A
DBS60E-BECJD1024
SFS60-HRAT0K02
DBS36E-S3EP00500
RE115L9E502W6017
