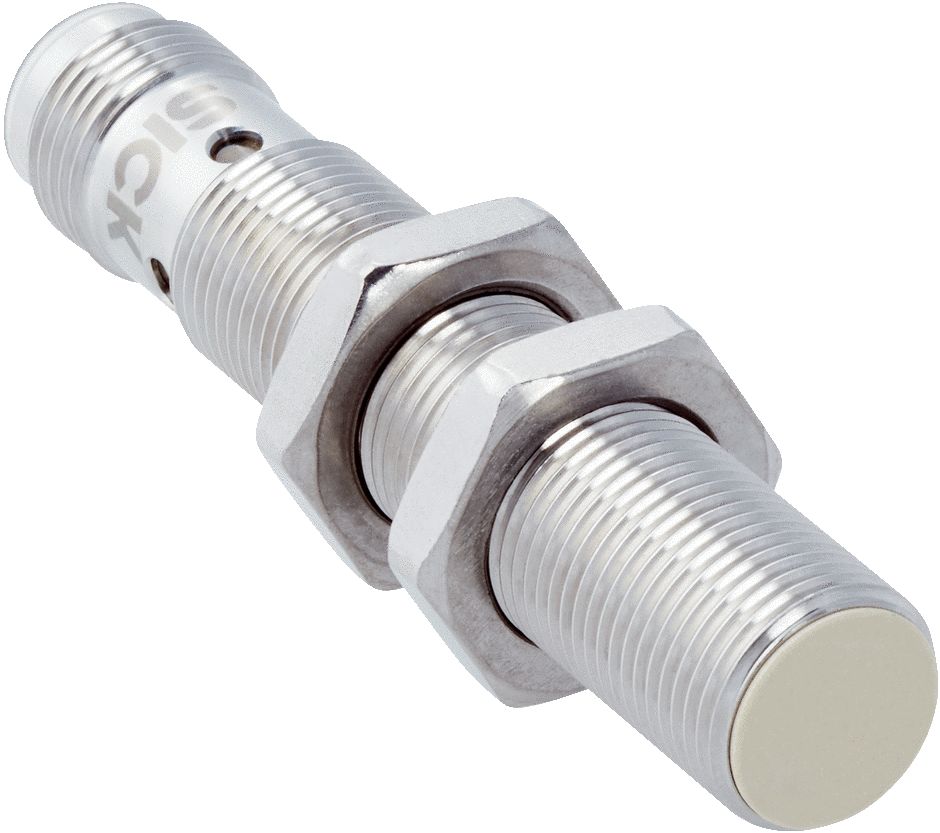

คุณสมบัติ | รายละเอียด |
---|---|
Thread Size | M12 |
Sensor Technology | Inductive |
Detection Range | 4 mm |
Body Style | Barrel |
Output Function | NO |
Digital Switching Output Type | PNP |
Connection Type | M12 |
Supply Voltage | 10 → 30 V dc |
Length | 65mm |
IP Rating | IP67 |
Mounting Type | Flush |
Housing Material | Stainless Steel |
Maximum DC Voltage | 30V |
Minimum Operating Temperature | -20°C |
Short Circuit Overload Protection | Yes |
Series | IMF |
Switching Frequency | 2 kHz |
Maximum Operating Temperature | +85°C |
Reverse Polarity Protection | Yes |
Standards Met | CE Certified UKCA |
Switching Current | 200 mA |
Communication Protocol | IO-LINK |
Maximum Switching Frequency | 2kHz |
Shielding | Shielded |
