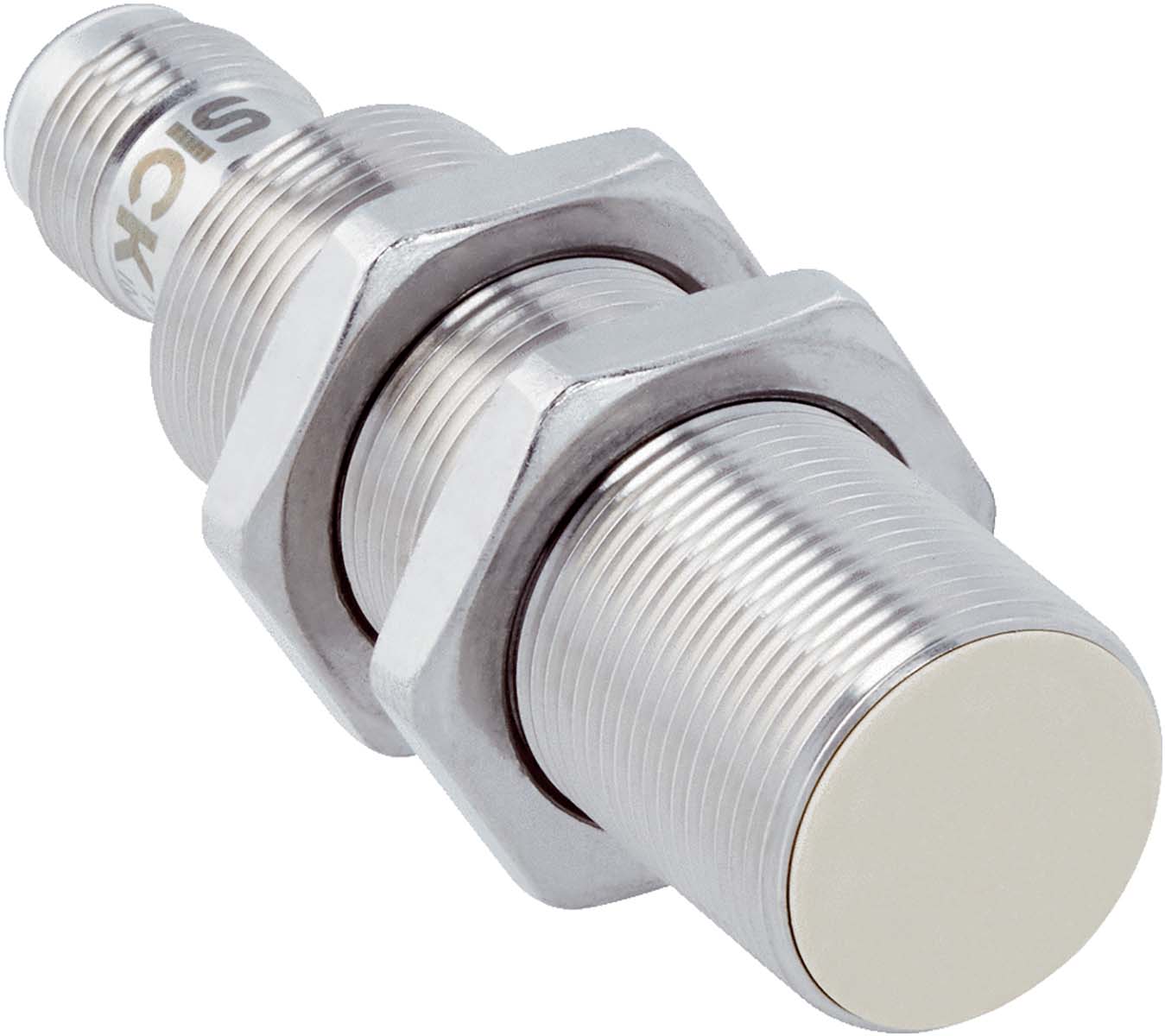

คุณสมบัติ | รายละเอียด |
---|---|
Thread Size | M18 |
Sensor Technology | Inductive |
Detection Range | 8 mm |
Body Style | Barrel |
Digital Switching Output Type | NPN |
Output Function | NO |
Connection Type | M12 |
Supply Voltage | 10 → 30 V dc |
Length | 65mm |
IP Rating | IP68, IP69K |
Mounting Type | Quasi-Flush |
Housing Material | Stainless Steel |
Width | 18mm |
Maximum DC Voltage | 30V |
Minimum Operating Temperature | -40°C |
Shielding | Quasi-Shielded |
Maximum Switching Frequency | 1kHz |
Short Circuit Overload Protection | Yes |
Switching Current | 200 mA |
Switching Frequency | 1 kHz |
Maximum Operating Temperature | +100°C |
Reverse Polarity Protection | Yes |
Series | IMF18 |
