คุณสมบัติ | รายละเอียด |
|---|---|

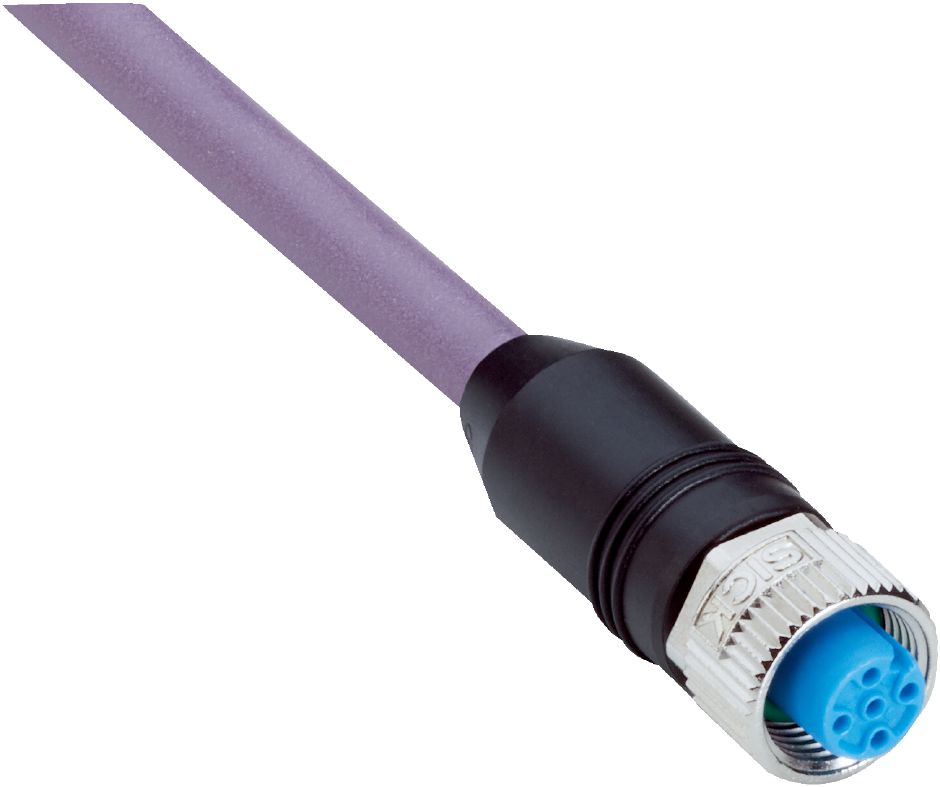

| Series | YF2A15 |
| Number of Cores | 5 |
| Cross Sectional Area | 0.25 mm² + 0.35 mm² + 1 x drain wire |
| Sheath Material | Polyurethane PUR |
| Length | 10m |
| Sheath Colour | Purple |
| Connector 1 Orientation | Straight |
| Connector 1 Gender | Female |
| Connector 1 Number of Contacts | 5 |
| Connector 1 | M12 |
| Connector 2 | Flying Leads |
| Coding | A |
| Mounting Type | Plug-In |
| Shielding | Unshielded |
| Shielded/Unshielded | Unshielded |
| Current Rating | 4 A |
| Voltage Rating | 1.5 kV |
| IP Rating | IP65, IP66K, IP67 |
| Operating Temperature Range | -30 - 70 °C |
| Minimum Operating Temperature | -30°C |
| Cable Shape | Round |
| Connector 1 Housing Gender | Female |
| Standards Met | IEC 60332-1-2, UL 1581 |
| Fire Behaviour | Flame Retardant |
| Maximum Operating Temperature | +70°C |
| Outer Diameter | 6.9mm |
