คุณสมบัติ | รายละเอียด |
|---|---|
| Series | YF2L15 |
| Cross Sectional Area | 1.5 mm² |
| Number of Cores | 5 |
| Length | 20m |
| Sheath Material | Polyurethane PUR |
| Sheath Colour | Black |
| Connector 1 Number of Contacts | 5 |
| Connector 1 Orientation | Straight |

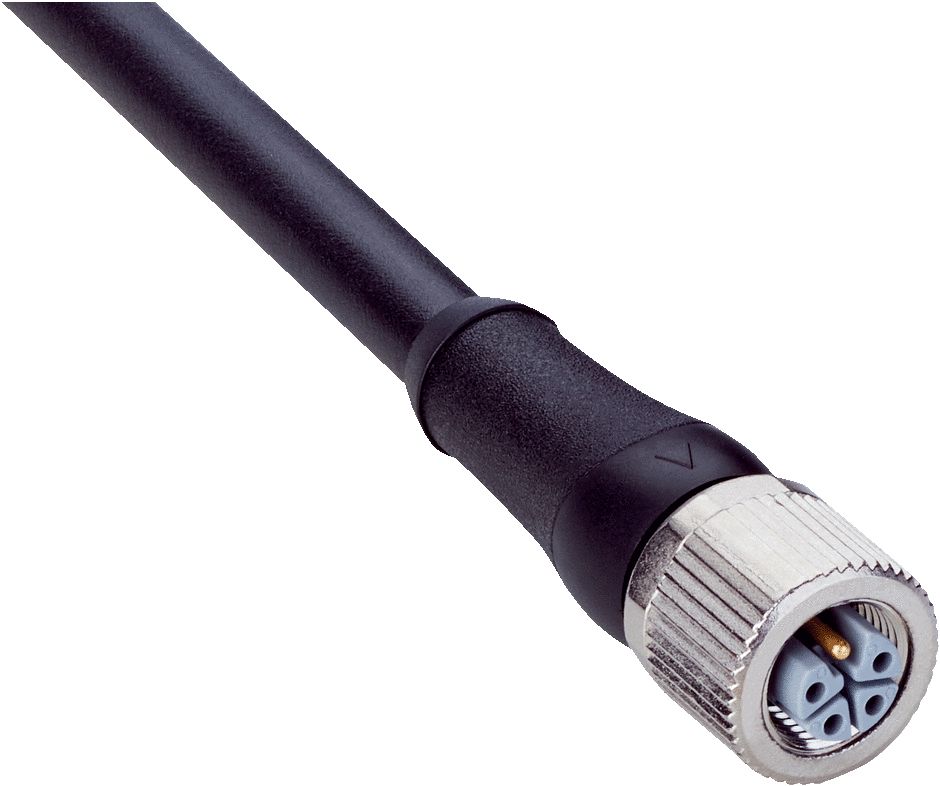

| Connector 1 | M12 |
| Connector 1 Gender | Female |
| Connector 2 | Unterminated |
| Connector 2 Orientation | Straight |
| Coding | L |
| Shielded/Unshielded | Unshielded |
| Shielding | Unshielded |
| Voltage Rating | 50/60 V ac/dc |
| Current Rating | 16 A |
| IP Rating | IP65, IP67 |
| Outer Diameter | 8.2mm |
| Operating Temperature Range | -25 - 80 °C |
| American Wire Gauge | 16 AWG |
| Maximum Operating Temperature | +80°C |
| Minimum Bend Radius | 82 mm |
| Minimum Operating Temperature | -25°C |
| Connector 1 Housing Gender | Female |
7000-12021-6140200
11301 RKMV 4-07/5 M
