คุณสมบัติ | รายละเอียด |
|---|---|
| Series | YF8U14 |
| Number of Cores | 4 |
| Cross Sectional Area | 0.25 mm² |
| Sheath Material | Polyvinyl Chloride PVC |
| Sheath Colour | Grey |
| Length | 10m |

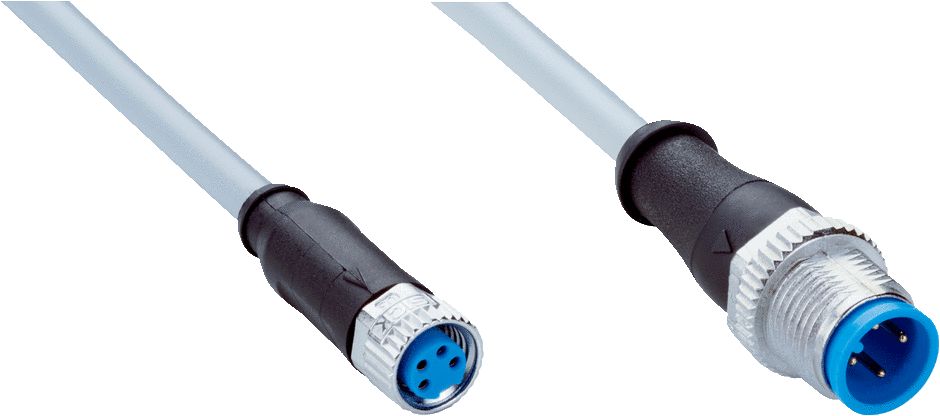

| Connector 1 | M8 |
| Connector 1 Gender | Female |
| Connector 1 Number of Contacts | 4 |
| Connector 1 Orientation | Straight |
| Connector 2 Housing Gender | Male |
| Connector 2 Orientation | Straight |
| Connector 2 Gender | Male |
| Connector 2 | M12 |
| Connector 2 Number of Contacts | 4 |
| Coding | A |
| Mounting Type | Plug-In |
| Shielded/Unshielded | Unshielded |
| Shielding | Unshielded |
| Current Rating | 4 A |
| Voltage Rating | 1.5 kV |
| IP Rating | IP65, IP66K, IP67 |
| Outer Diameter | 4.8mm |
| Connector 1 Housing Gender | Female |
| American Wire Gauge | 24 |
| Operating Temperature Range | -5 → 80 °C |
| Maximum Operating Temperature | +80°C |
| Minimum Bend Radius | 48 mm |
| Standards Met | UL |
| Minimum Operating Temperature | -5°C |
| Fire Behaviour | Flame Retardant |
| Oil Resistant | Yes |
| Cable Shape | Round |
