คุณสมบัติ | รายละเอียด |
|---|---|

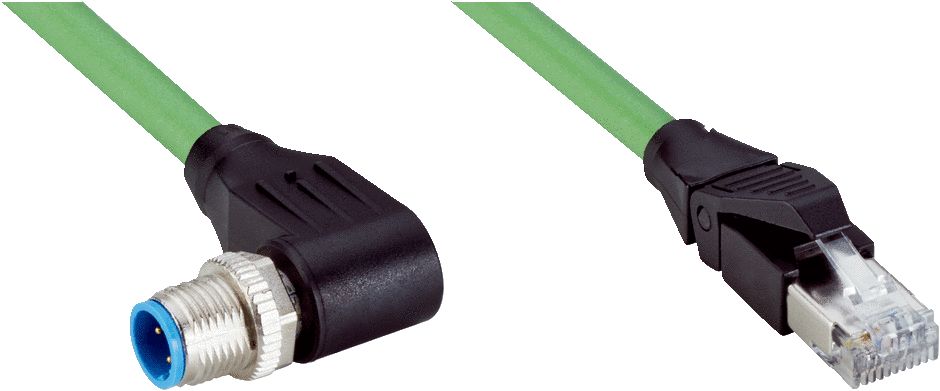

| Series | YN2D24 |
| Number of Cores | 4 |
| Length | 5m |
| LAN Category | Cat5e |
| Sheath Material | PUR |
| Sheath Colour | Green |
| Connector 1 Number of Contacts | 4 Pin |
| Connector 1 | M12 |
| Connector 1 Gender | Male |
| Connector 1 Orientation | Right Angle |
| Connector 2 Housing Gender | Male |
| Connector 2 Gender | Male |
| Connector 2 Orientation | Straight |
| Connector 2 Number of Contacts | 4 Pin |
| Connector 2 | RJ45 |
| Coding | D |
| Shielded/Unshielded | Shielded |
| Shielding | Shielded |
| Armoured | No |
| Voltage Rating | 300 V ac |
| Current Rating | 1.5 A |
| IP Rating | IP67 |
| Oil Resistant | Yes |
| Cable Shape | Round |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -30°C |
| Fire Behaviour | Flame Retardant |
| Insulation Material | PUR |
| Minimum Bend Radius | 12 |
| Outer Diameter | 6.7mm |
| Connector 1 Housing Gender | Male |
| Core Strands | 4 |
| Operating Temperature Range | -30 °C to +70 °C |
45789 RST 5-3-RKT 5-3-226/5 M
29634 RST 5-RKWT 5-228/5 M
YG2A15-100VB5XLEAX
