คุณสมบัติ | รายละเอียด |
|---|---|

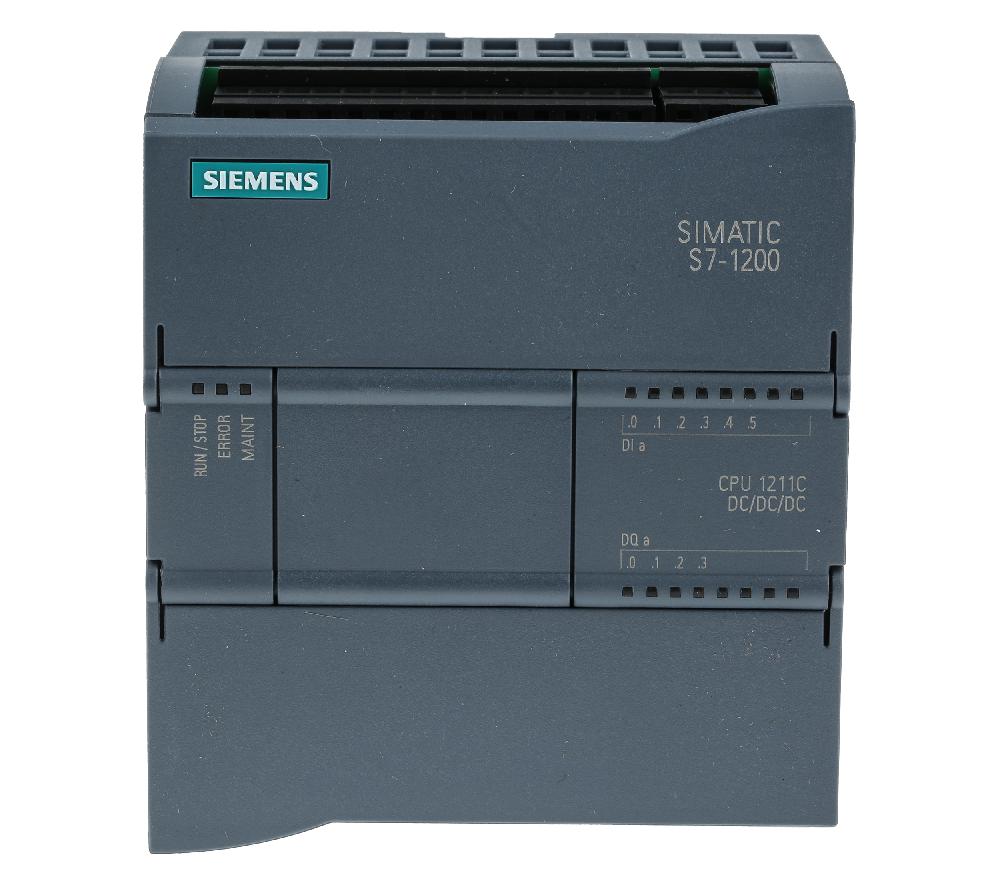

| Manufacturer Series | SIMATIC S7-1200 |
| Number of Inputs | 6 (Digital, 2 switch as Analogue) |
| Output Type | Digital, Transistor |
| For Use With | SIMATIC S7-1200 Series |
| Supply Voltage | 20.4 → 28.8 V dc |
| Input Type | Analogue, Digital |
| Number of Digital Inputs | 6 |
| Number of Outputs | 4 (Digital Output, Transistor Output) |
| Voltage Category | 24 V dc |
| Network Type | Ethernet |
| Number of Digital Outputs | 4 |
| Kit Included | No |
| Better World Claim | Saves energy |
| Interface | Ethernet, PROFINET |
| Better World Product | Yes |
| Memory | 1 MB |
| Dimensions | 100 x 90 x 75 mm |
| Programming Interface | Profinet |
| Minimum Operating Temperature | -20°C |
| Battery Backup | Yes |
| Number of Analogue Outputs | 0 |
| Width | 90mm |
| Length | 100mm |
| Depth | 75mm |
| Program Capacity | 30 kB |
| Number of Analogue Inputs | 2 |
| Mounting Type | DIN Rail, Wall Mount |
| Programming Language Used | FBD, LAD, SCL |
| Maximum Operating Temperature | +60°C |
| Output Current | 500 mA |
| Communication Port Type | Ethernet, Profinet, UDP |
| Number of Communication Ports | 1 |
