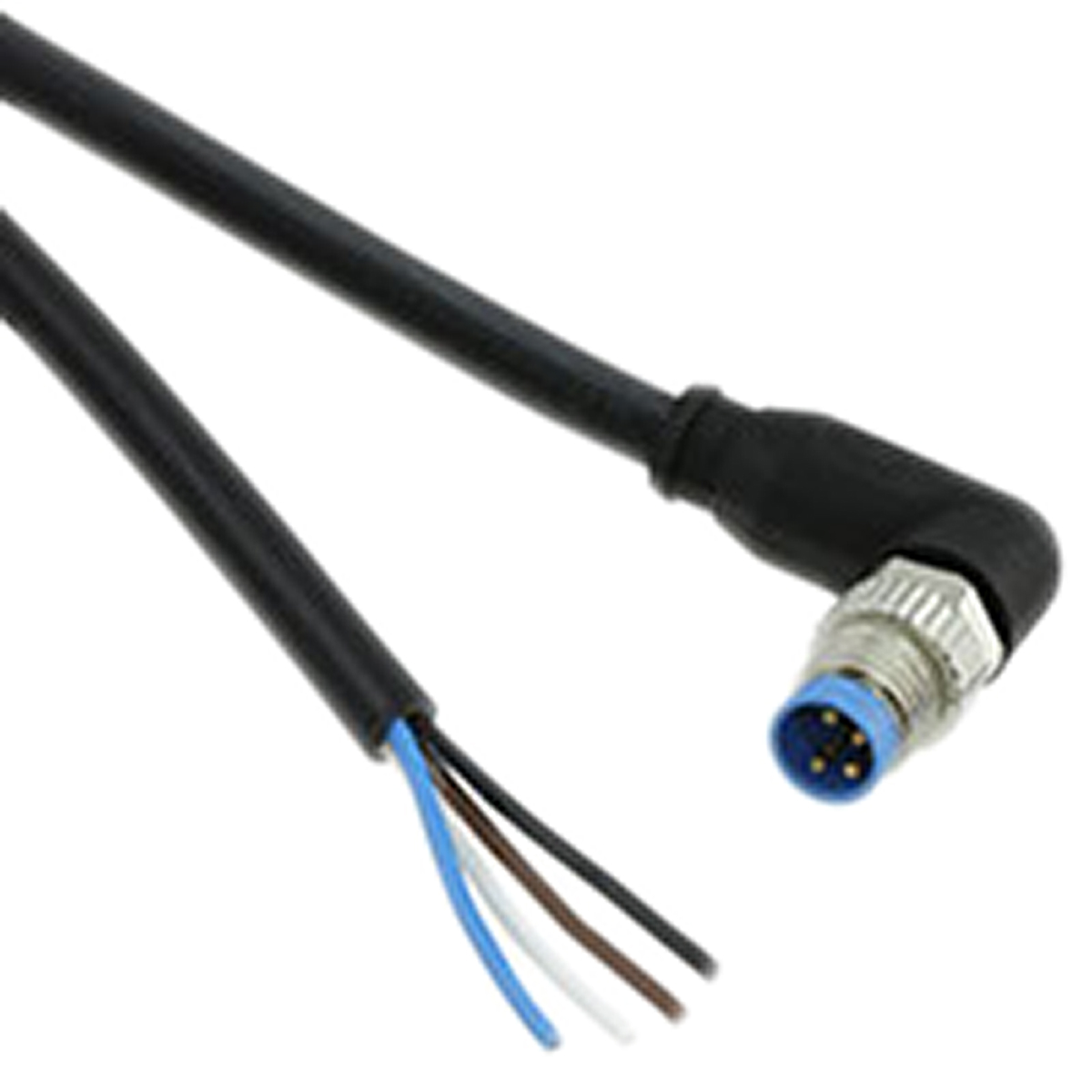

คุณสมบัติ | รายละเอียด |
|---|---|
| Number of Cores | 4 |
| Cross Sectional Area | 0.25 mm² |
| Sheath Colour | Black |
| Sheath Material | PUR |
| Length | 1.5m |
| Connector 1 | M8 |
| Connector 1 Gender | Male |
| Connector 1 Number of Contacts | 4 |
| Connector 1 Orientation | Right Angle |
| Connector 2 | Unterminated |
| Coding | A |
| Shielded/Unshielded | Unshielded |
| Voltage Rating | 30 V ac/dc |
| Current Rating | 4 A |
| IP Rating | IP65, IP67 |
| Standards Met | CSA, ELV Compliant, EN 60529, RoHS Compliant, UL |
| Cable Shape | Multicore |
| Insulation Material | PP |
| Minimum Operating Temperature | -40°C |
| Minimum Bend Radius | 44 mm |
| Maximum Operating Temperature | +80°C |
| Operating Temperature Range | -40 - +80 °C |
| Connector 1 Housing Gender | Male |
| Outer Diameter | 4.4mm |
| American Wire Gauge | 24 AWG |
20036 RSMV 4-RKT 4-225/1 M
4225 RSMV 3-RKMW 3-294/1 M
643621120308
