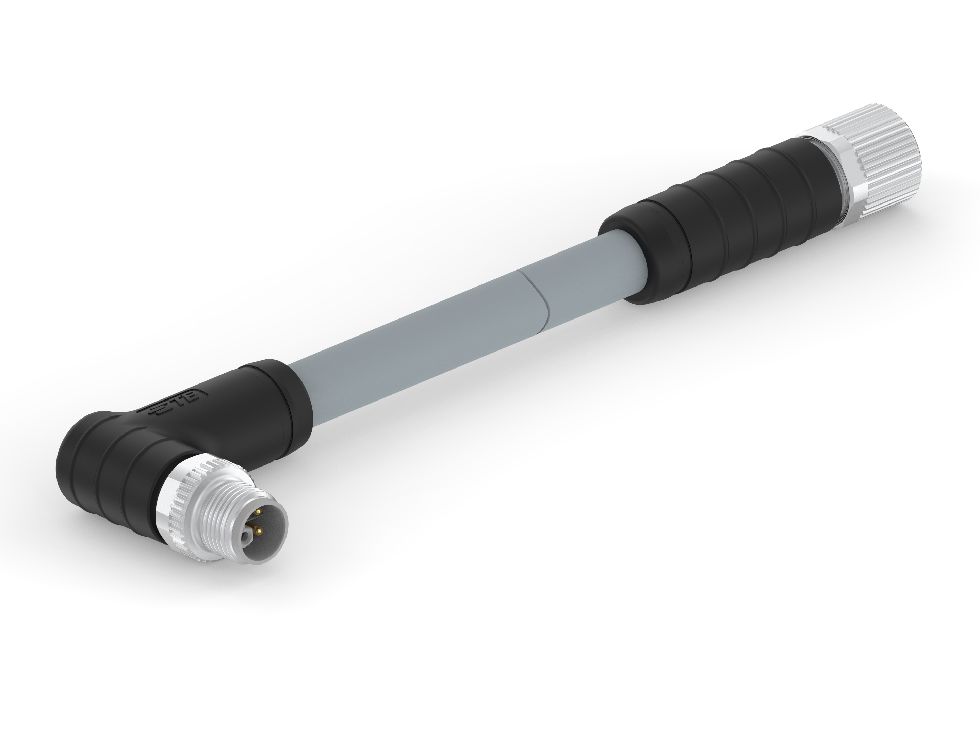

คุณสมบัติ | รายละเอียด |
|---|---|
| Series | M12 L-Code |
| Cross Sectional Area | 2.5 mm² |
| Sheath Material | Nylon |
| Length | 1.5m |
| Sheath Colour | Grey |
| Connector 1 | M12 |
| Connector 1 Number of Contacts | 5 |
| Connector 1 Gender | Male |
| Connector 1 Orientation | Right Angle |
| Connector 2 Housing Gender | Female |
| Connector 2 Gender | Female |
| Connector 2 | M12 |
| Connector 2 Orientation | Straight |
| Connector 2 Number of Contacts | 5 |
| Coding | L |
| Voltage Rating | 63 V |
| Current Rating | 16 A |
| IP Rating | IP67 |
| Insulation Material | PP |
| Outer Diameter | 10.4mm |
| Number of Strands | 124 |
| Conductor Material | Copper |
| Minimum Operating Temperature | -25°C |
| American Wire Gauge | 14 AWG |
| Connector 1 Housing Gender | Male |
| Maximum Operating Temperature | +85°C |
| Standards Met | UL |
79-1409-12-04
934636999 RKWT/LED W 4-225/5 M
YF8U13-050VA1M2A13
T4171110405-001
DOL-2308-G15MJB2
