คุณสมบัติ | รายละเอียด |
|---|---|
| Series | T417 |
| Cross Sectional Area | 0.34 mm² |
| Number of Cores | 4 |
| Length | 200mm |
| Sheath Material | PVC |
| Connector 1 Number of Contacts | 4 |
| Connector 1 Gender | Male |

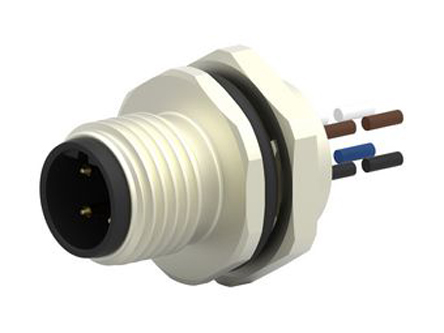

| Connector 1 | M12 |
| Connector 1 Orientation | Straight |
| Connector 2 | Unterminated |
| Coding | A |
| Mounting Type | Panel Mount |
| Shielded/Unshielded | Unshielded |
| Voltage Rating | 250 V ac/dc |
| Current Rating | 4 A |
| IP Rating | IP67 |
| Minimum Operating Temperature | -40°C |
| Connector 1 Housing Gender | Male |
| Insulation Material | PVC |
| Operating Temperature Range | -40 → +85 °C |
| Conductor Resistance | |
| American Wire Gauge | 22 AWG |
| Maximum Operating Temperature | +85°C |
| Fire Behaviour | Self-extinguishing |
| Conductor Material | Copper |
| Cable Shape | Multicore |
| Standards Met | IEC 61076-2-101, UL, UL 94 V-0 |
YG2A14-012UB3XLEAX
12019 RST 5-RKT 5-228/0,6 M
7000-12341-2141000
Y92E-S08PP3A 5M
