คุณสมบัติ | รายละเอียด |
|---|---|
| Output Voltage | ±12V dc |
| Input Voltage Range | 21.6 → 26.4 V dc |
| Power Rating | 1W |
| Input Voltage Nominal | 24 V dc |
| Output Current | ±41mA |
| Mounting Type | Through Hole |
| Isolated | Yes |
| Number of Outputs | 2 |
| Package | SIP |
| Isolation Voltage | 1.5kV dc |
| Length | 19.5mm |
| Width | 6mm |
| Depth | 9.55mm |

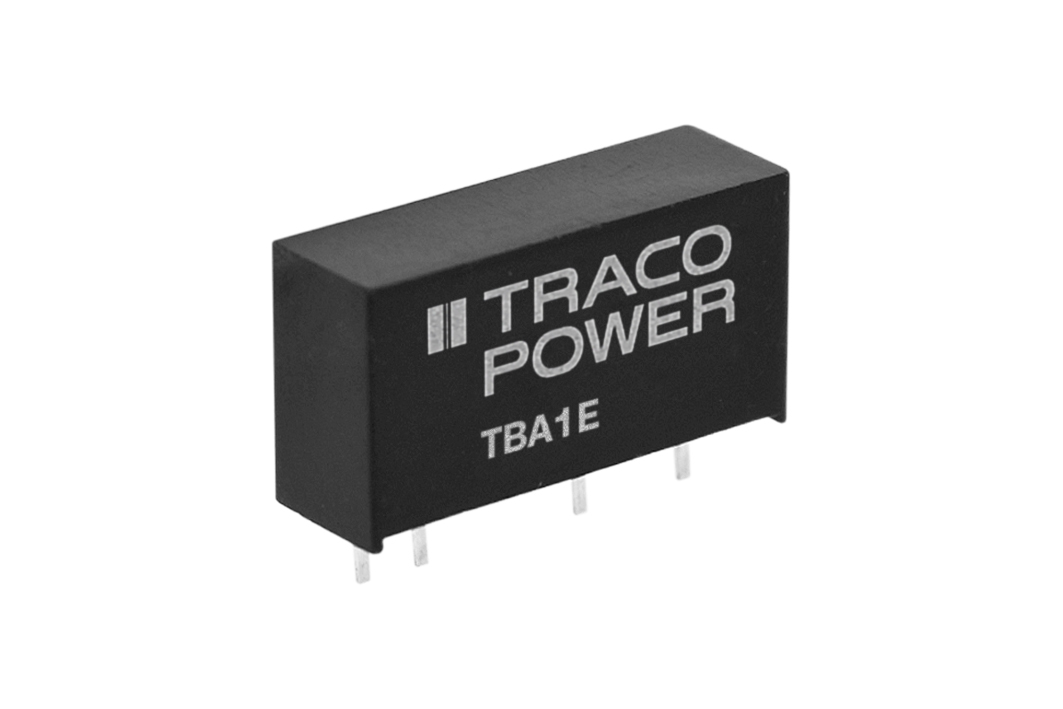

| Series | TBA 1E |
| Load Regulation | 1 (Full Load)% |
| Standards Met | EN 62368-1, IEC 62368-1 |
| Maximum Temperature | +85°C |
| Minimum Temperature | -40°C |
| Efficiency | 82% |
