คุณสมบัติ | รายละเอียด |
|---|---|
| Output Voltage | 15V dc |
| Input Voltage Range | 18 → 36 V dc |
| Power Rating | 10W |
| Input Voltage Nominal | 24 V dc |
| Output Current | 670mA |
| Mounting Type | Through Hole |
| Isolated | Yes |
| Number of Outputs | 1 |
| Package | 2 x 1 in |
| Isolation Voltage | 1.5kV dc |
| Width | 25.4mm |
| Depth | 10.2mm |
| Length | 50.8mm |

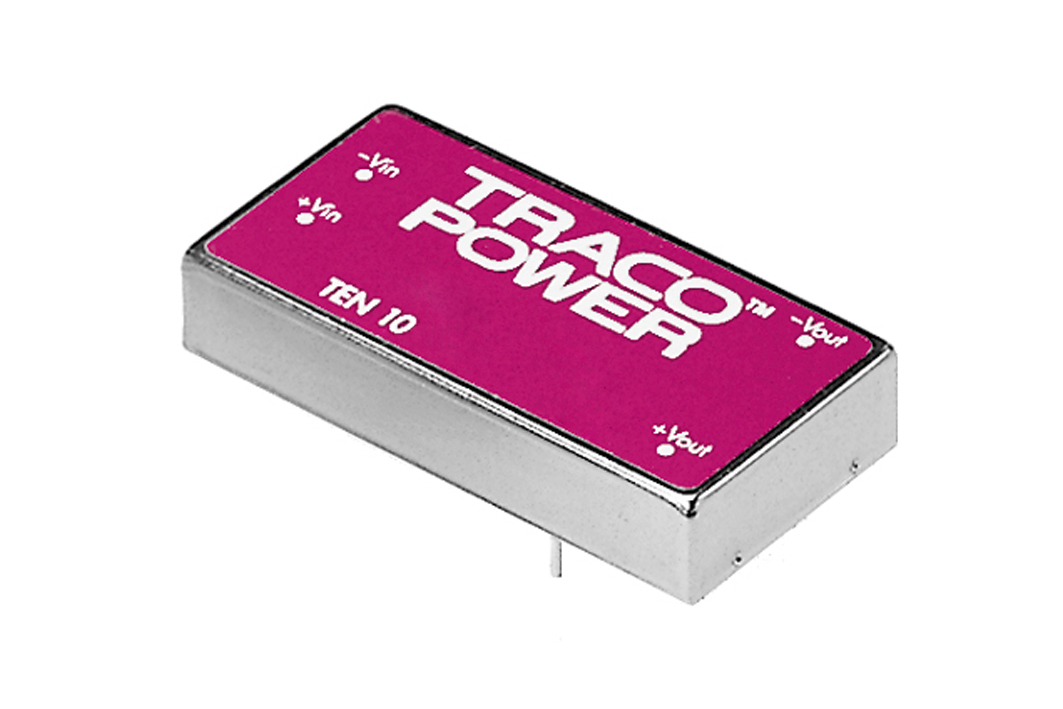

| Series | TEN 10 |
| Load Regulation | ±0.5% |
| Maximum Temperature | +85°C |
| Minimum Temperature | -40°C |
| Efficiency | 82% |
