คุณสมบัติ | รายละเอียด |
|---|---|
| Output Voltage | ±15V dc |
| Input Voltage Range | 9 → 18 V dc |
| Power Rating | 25 W, 30W |
| Input Voltage Nominal | 12 V dc |
| Output Current | ±1A |
| Mounting Type | Through Hole |
| Isolated | Yes |
| Number of Outputs | 2 |
| Package | 1.6 x 2 in |
| Isolation Voltage | 1.5kV dc |
| Depth | 9.5mm |
| Width | 50.8mm |
| Length | 40.6mm |

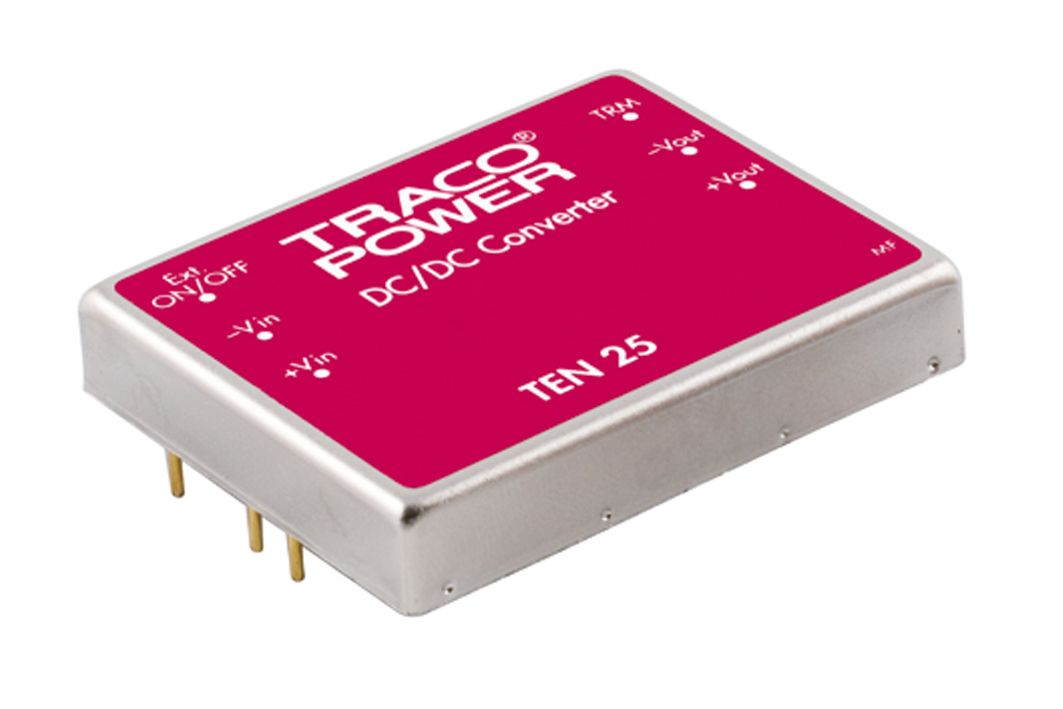

| Series | TEN 25 |
| Load Regulation | ±2% |
| Minimum Temperature | -40°C |
| Maximum Temperature | +85°C |
| Efficiency | 88% |
