คุณสมบัติ | รายละเอียด |
|---|---|
| Output Voltage | 3.3V dc |
| Input Voltage Range | 4.5 → 9 V dc |
| Power Rating | 10W |
| Input Voltage Nominal | 5 V dc |
| Output Current | 2.5A |
| Mounting Type | Through Hole |
| Isolated | Yes |
| Number of Outputs | 1 |
| Package | DIP 24 |
| Isolation Voltage | 5kV ac |
| Length | 31.8mm |
| Depth | 10.2mm |

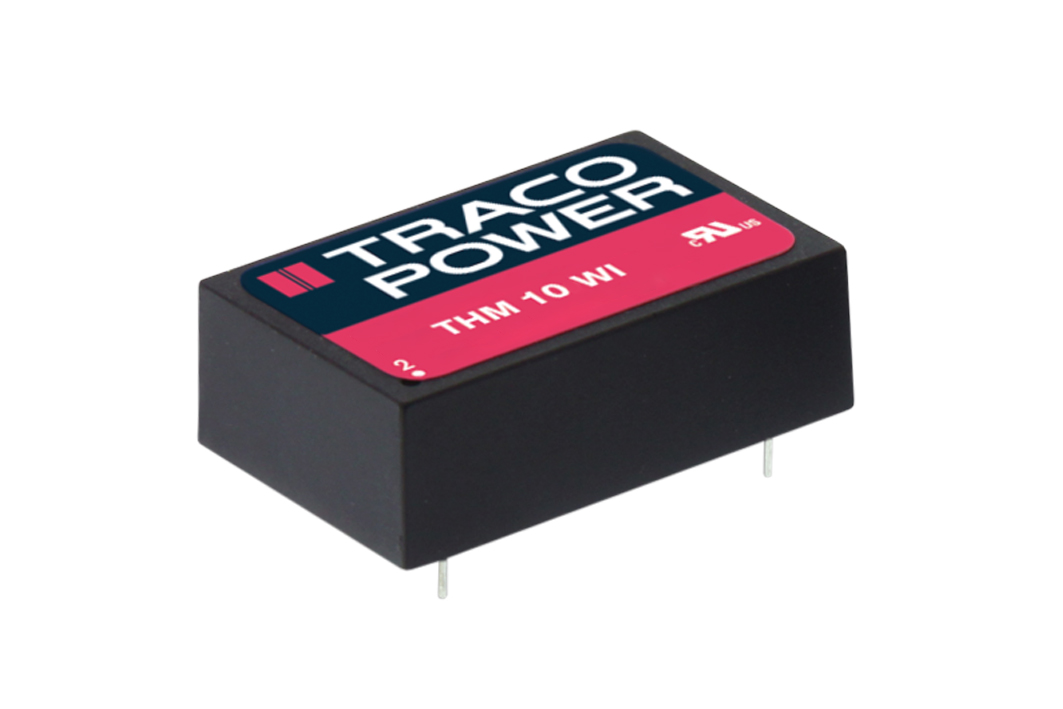

| Series | THM 10WI |
| Railway Approved | No |
| Load Regulation | 0.002 |
| Minimum Temperature | -40°C |
| Efficiency | 80% |
| Maximum Temperature | +85°C |
| Medical Approved | Yes |
TMR 3-2421WI
