คุณสมบัติ | รายละเอียด |
|---|---|
| Output Voltage | ±15V dc |
| Input Voltage Range | 9 → 18 V dc |
| Power Rating | 3W |
| Input Voltage Nominal | 12 V dc |
| Output Current | ±100mA |
| Mounting Type | Through Hole |
| Isolated | Yes |
| Number of Outputs | 2 |
| Package | SIP 8 |
| Isolation Voltage | 1.5kV dc |
| Length | 21.8mm |
| Depth | 11.2mm |

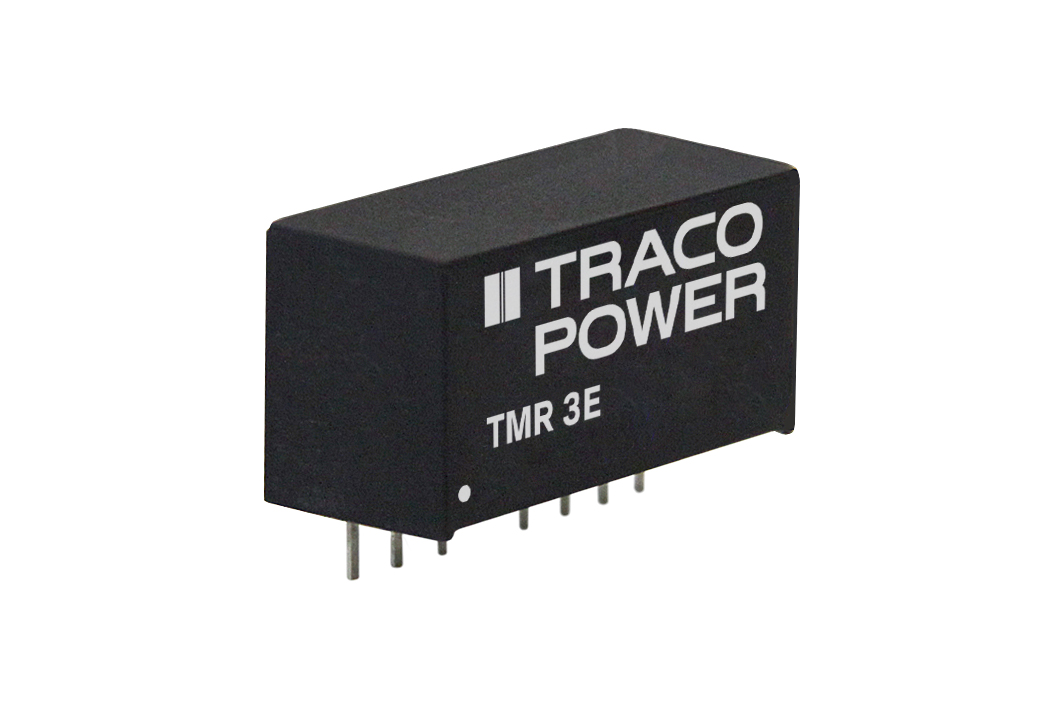

| Series | TMR 3E |
| Load Regulation | ±1% |
| Efficiency | 83% |
| Maximum Temperature | +85°C |
| Minimum Temperature | -40°C |
