คุณสมบัติ | รายละเอียด |
|---|---|
| Output Voltage | ±12V dc |
| Input Voltage Range | 36 → 75 V dc |
| Power Rating | 3.5W |
| Input Voltage Nominal | 48 V dc |
| Output Current | 145mA |
| Mounting Type | Through Hole |
| Isolated | Yes |
| Number of Outputs | 2 |
| Package | DIP-24 |
| Isolation Voltage | 7kV dc |
| Depth | 12mm |
| Width | 20.3mm |
| Length | 31.8mm |

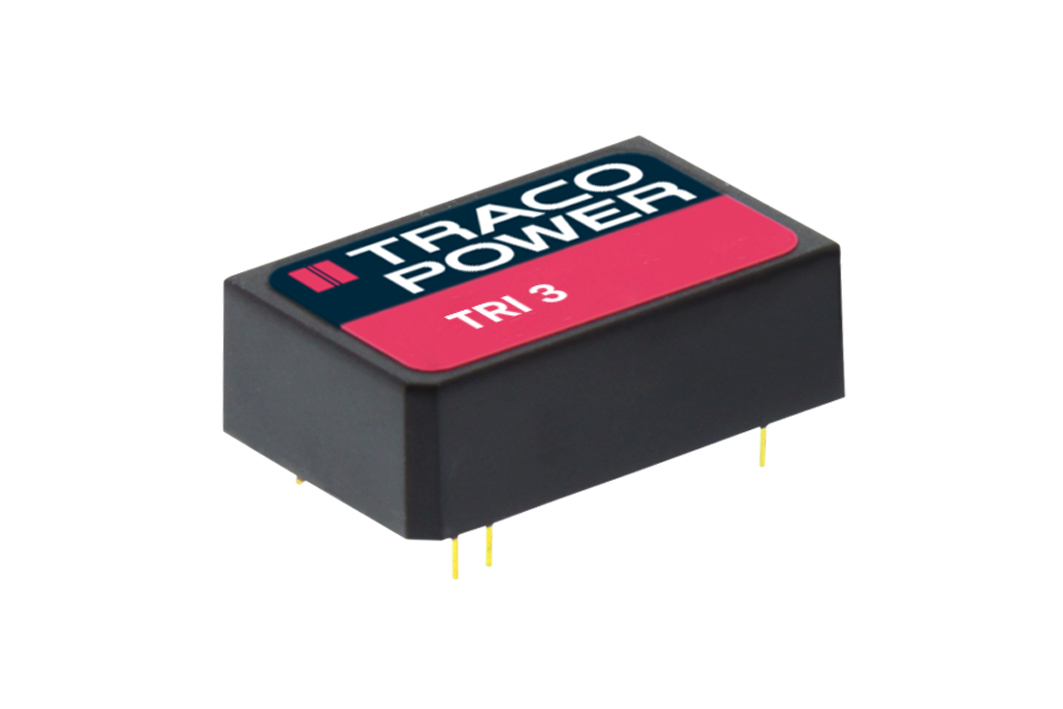

| Series | TRI 3 |
| Load Regulation | 0.005 |
| Efficiency | 84% |
| Minimum Temperature | -40°C |
| Maximum Temperature | +96°C |
