คุณสมบัติ | รายละเอียด |
|---|---|
| Output Voltage | ±12V dc |
| Input Voltage Range | 4.5 → 5.5 V dc |
| Power Rating | 2W |
| Input Voltage Nominal | 5 V dc |
| Output Current | ±83mA |
| Mounting Type | Through Hole |
| Isolated | Yes |
| Number of Outputs | 2 |
| Package | SIP 7 |
| Isolation Voltage | 5.2kV dc |
| Width | 7.2mm |
| Depth | 10mm |
| Length | 19.5mm |

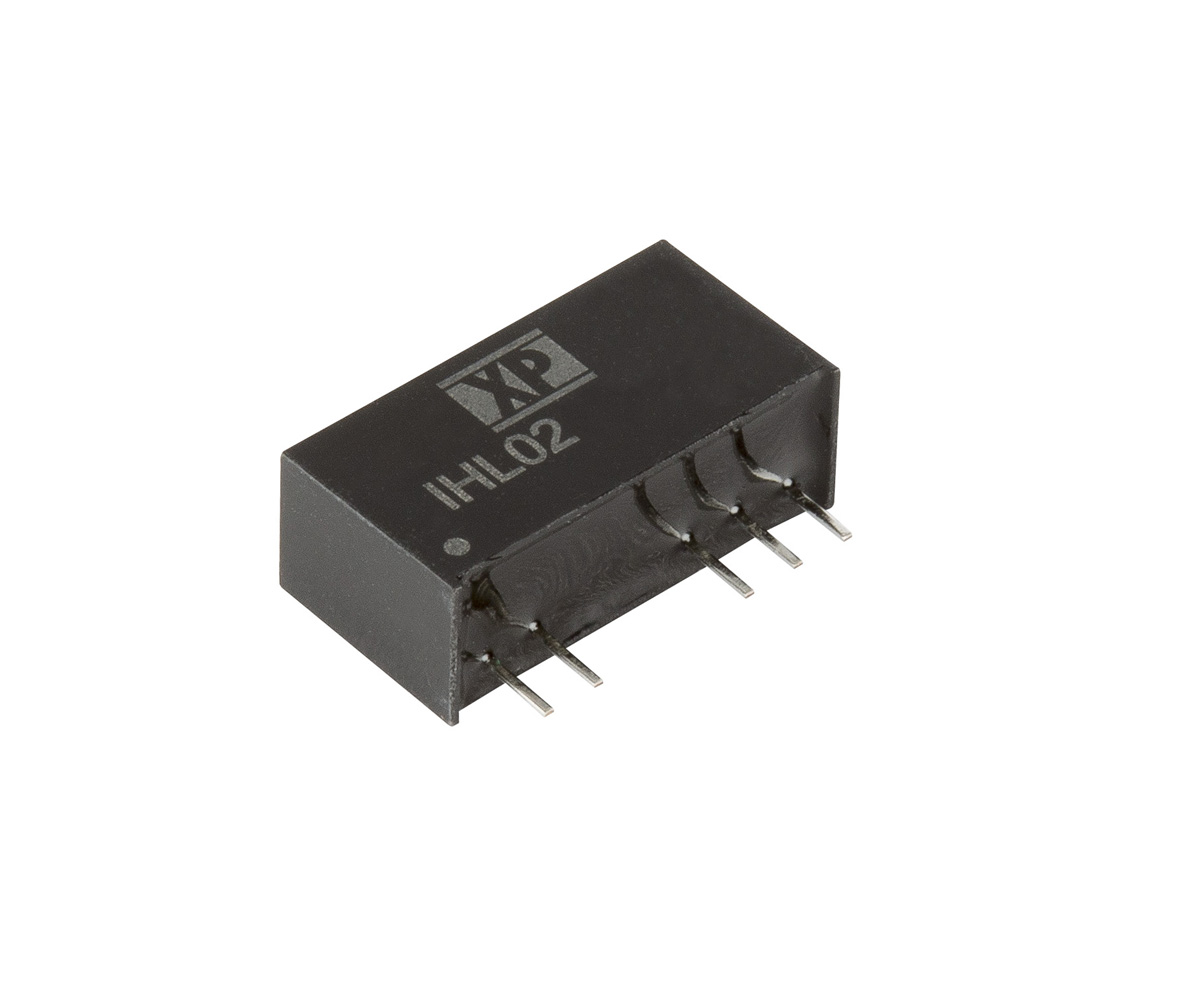

| Series | IHL02 |
| Load Regulation | 0.1 |
| Standards Met | EN 55032, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F |
| Minimum Temperature | -40°C |
| Maximum Temperature | +95°C |
