คุณสมบัติ | รายละเอียด |
|---|---|
| Output Voltage | 24V dc |
| Input Voltage Range | 18 → 36 V dc |
| Power Rating | 1W |
| Input Voltage Nominal | 24 V dc |
| Output Current | 42mA |
| Mounting Type | Through Hole |
| Isolated | Yes |
| Number of Outputs | 1 |
| Package | SIP 6 |
| Isolation Voltage | 1.5kV dc |
| Depth | 11mm |
| Width | 7.62mm |
| Length | 17mm |

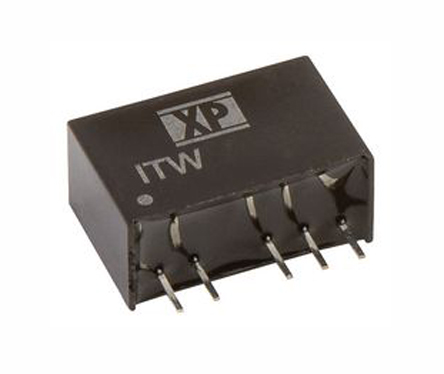

| Series | ITW |
| Load Regulation | ±1% |
| Standards Met | EN55022, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, MIL-HDBK-217F |
| Maximum Temperature | +105°C |
| Minimum Temperature | -40°C |
