คุณสมบัติ | รายละเอียด |
|---|---|
| Output Voltage | ±5V dc |
| Input Voltage Range | 18 → 36 V dc |
| Power Rating | 6W |
| Input Voltage Nominal | 24 V dc |
| Output Current | ±500mA |
| Mounting Type | Through Hole |
| Isolated | Yes |
| Number of Outputs | 2 |
| Package | DIP 24 |
| Isolation Voltage | 1.5kV dc |
| Width | 20.3mm |
| Depth | 10mm |
| Length | 25.4mm |

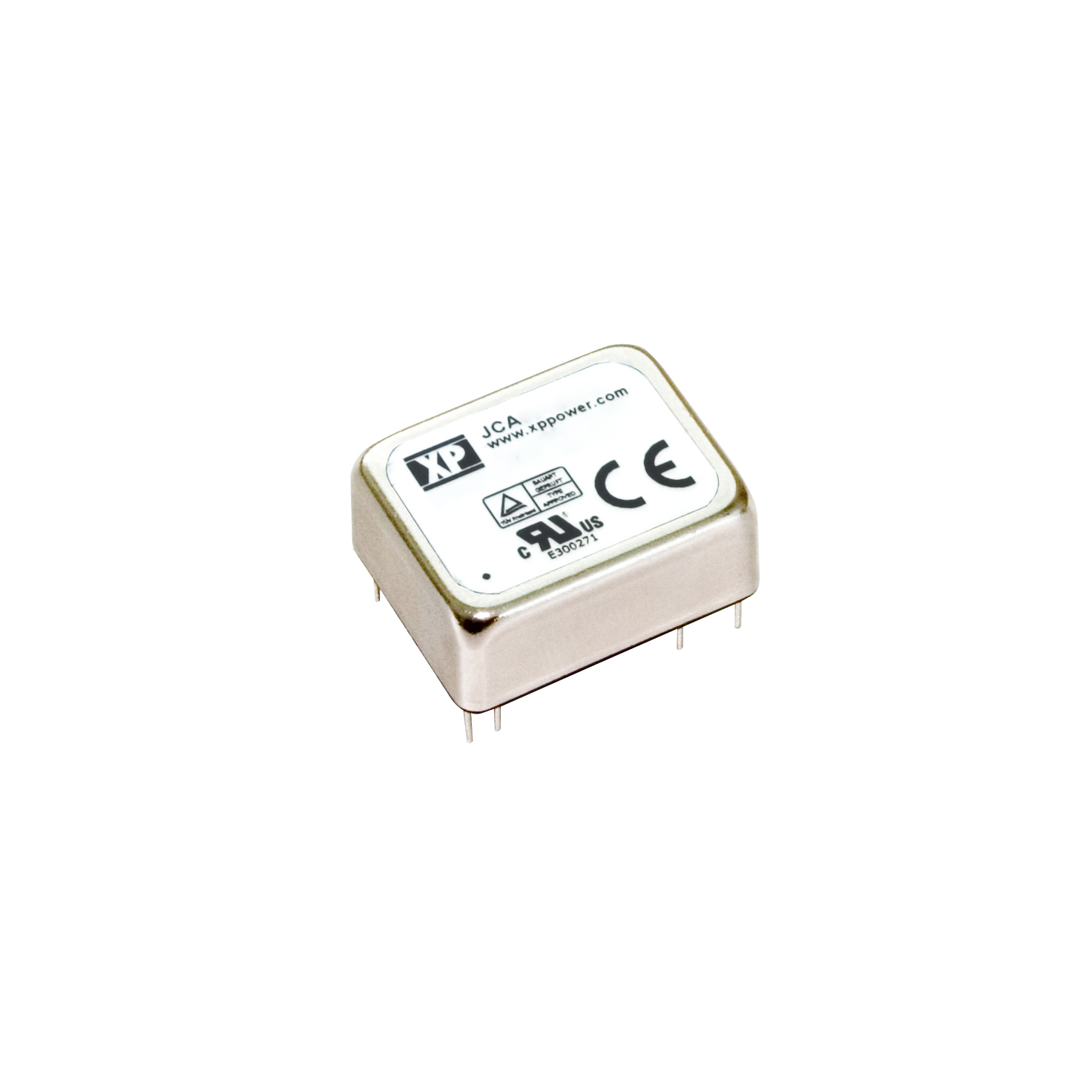

| Series | JCA |
| Load Regulation | ±1% |
| Maximum Temperature | +100°C |
| Minimum Temperature | -40°C |
| Efficiency | 81% |
