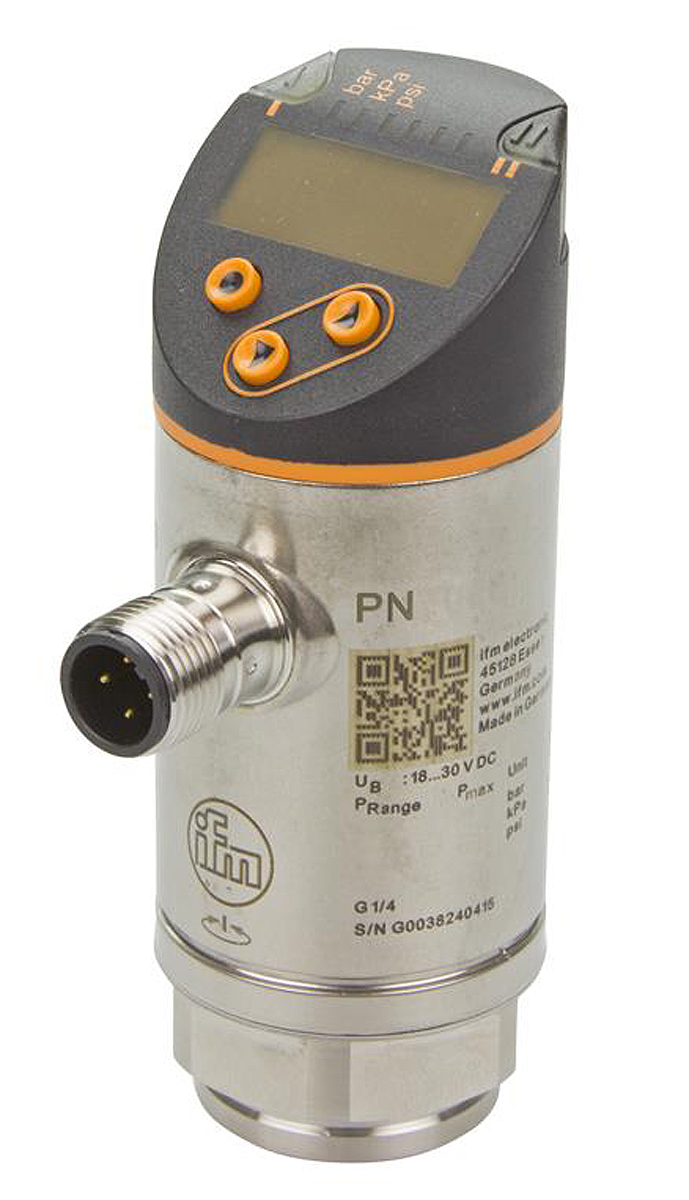

คุณสมบัติ | รายละเอียด |
|---|---|
| Pressure Reading Type | Relative |
| Minimum Pressure Reading | 0bar |
| Maximum Pressure Reading | 2.5bar |
| Accuracy | ±0.5 % |
| Output Type | Analogue + PNP-NO/NC Programmable |
| Media Measured | Fluid |
| Process Connection | G1/4 |
| Analogue Output | 0 → 10 V |
| Electrical Connection | M12 Connector |
| Communication Protocol | IO-LINK |
| Response Time | <3 (Maximum Analogue Output) ms, <3 (Minimum Switching Output) ms |
| Maximum Current | 150 mA @ +60 °C, 200 mA @ +60 °C, 250 mA @ +40 °C |
| Supply Voltage | 18 → 30 V dc |
| Interface | IO-Link |
| Housing Material | PBT GF20, PBT+PC GF30, PC, Stainless Steel |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +80°C |
| IP Rating | IP65, IP67 |
XMLP025BD21F
XMLP2D5GD21F
058692 MCS11-G
MPXV2202DPT1
PMP21-AA1U1WBWJJ
PMP21-AA1U1UBWBJ
PTP31B-AA7M1PGBWWJ
