คุณสมบัติ | รายละเอียด |
|---|---|

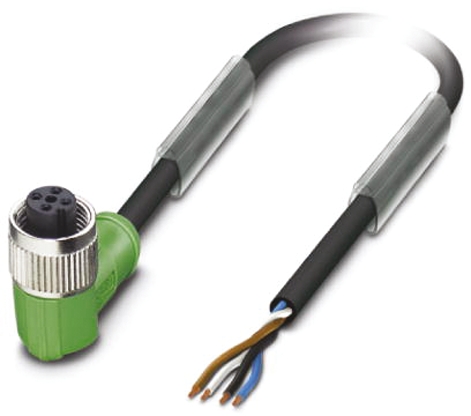

| Series | SAC-4P-10.0-PUR/M12FR |
| Cross Sectional Area | 0.34 mm² |
| Sheath Material | PUR |
| Length | 10m |
| Sheath Colour | Black |
| Connector 1 Orientation | Right Angle |
| Connector 1 Number of Contacts | 4 |
| Connector 1 Gender | Female |
| Connector 1 | M12 |
| Connector 2 | Unterminated |
| Coding | A |
| Shielded/Unshielded | Unshielded |
| Voltage Rating | 250 V |
| Current Rating | 4 A |
| IP Rating | IP65, IP67, IP68 |
| Oil Resistant | Yes |
| Standards Met | cUL, cULus, EAC, IEC 61076-2-101, UL |
| Minimum Operating Temperature | -25°C |
| Fire Behaviour | Halogen Free |
| Insulation Material | PUR |
| Conductor Resistance | 58 O/km |
| Outer Diameter | 4.2mm |
| Connector 1 Housing Gender | Female |
| Maximum Operating Temperature | +90°C |
| Conductor Material | Copper |
| Minimum Bend Radius | 5 x D (Fixed), 10 x D (Flexible) |
| Cable Shape | 4 Twisted Pair |
| American Wire Gauge | 22 AWG |
